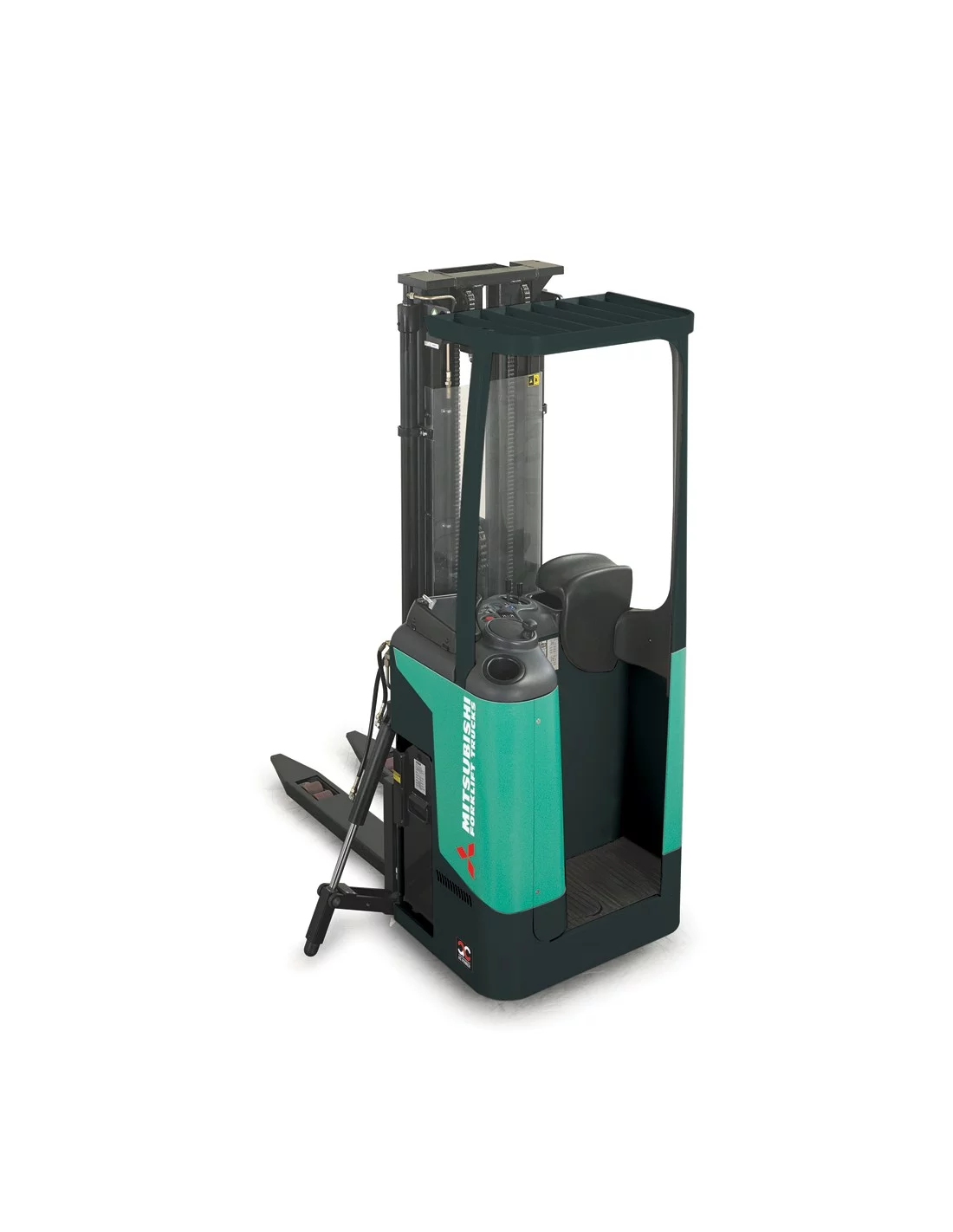

    SBR12-20N

    Stand-up Stacker: for a profitable warehouse! Storage of pallets up to 1450kg at a height of 6.3 meters. Aisle width of only 2.48 meters. Operator protected by the chassis.

    Request a quote

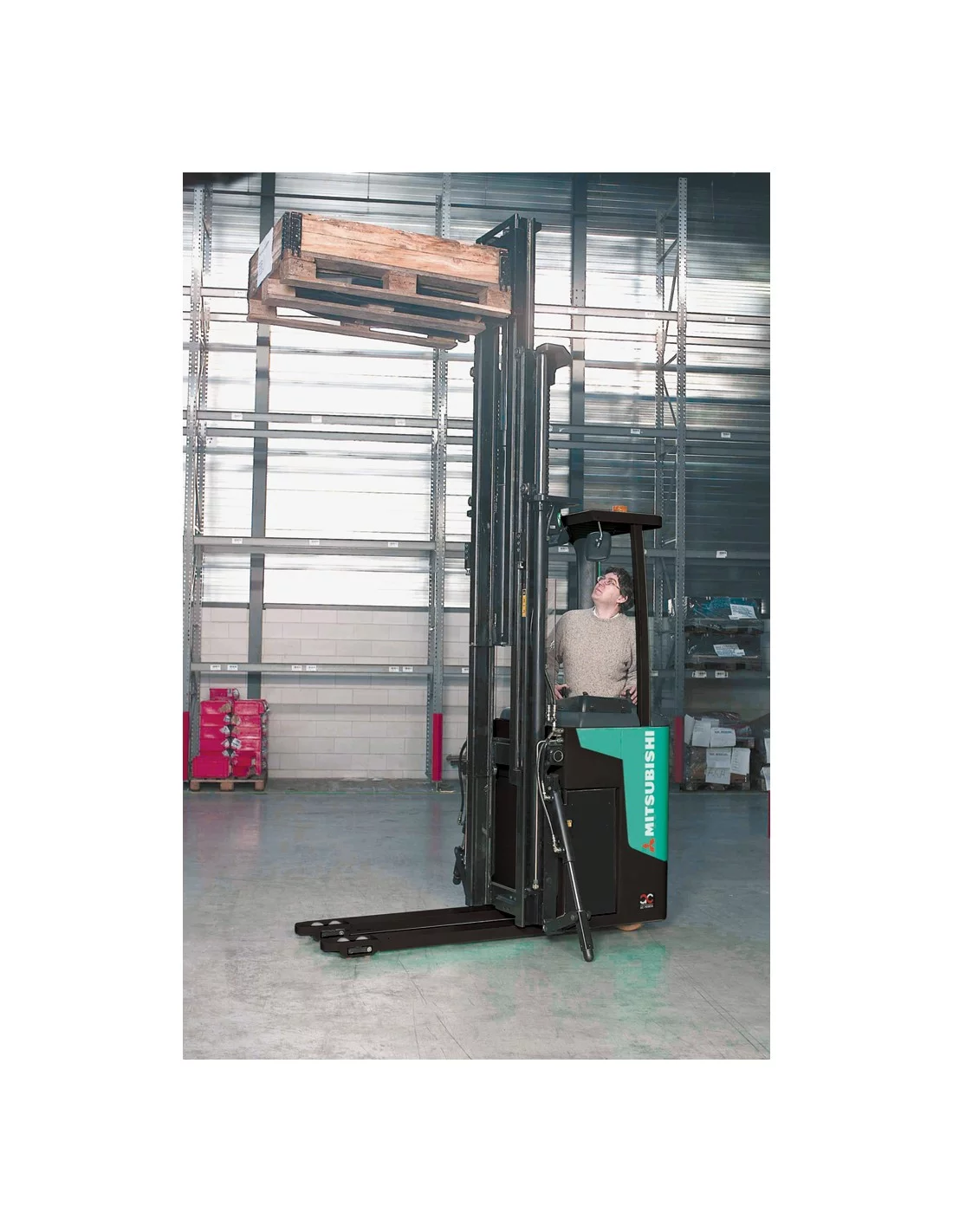

    For duties which involve horizontal movement over large distances, as well as stacking, our stand-on stackers are ideal. Importantly, these trucks are very compact and can work in narrower aisles than a reach truck. A choice of three load capacities is available: 1.2, 1.6 and 2.0 tonnes.The first two models will lift to a height of 6.5 m and the 2.0 tonne model to 6.3 m. Using the optional side stabilisers, residual capacity during higher lifts is increased.

    Productivity is optimised by fast travel and lifting speeds, advanced electronic technology and ergonomic design. The operator enjoys quick on-off access, a comfortable standing position, good visibility and highly efficient fly-by-wire steering.

    • AC drive motor and controller

    This technology gives powerful, controllable and flexible performance, that is fully programmable to match the needs of each operator and application perfectly.

    • Strong fully-welded forks

    Robust fork construction offers long, trouble-free operation.

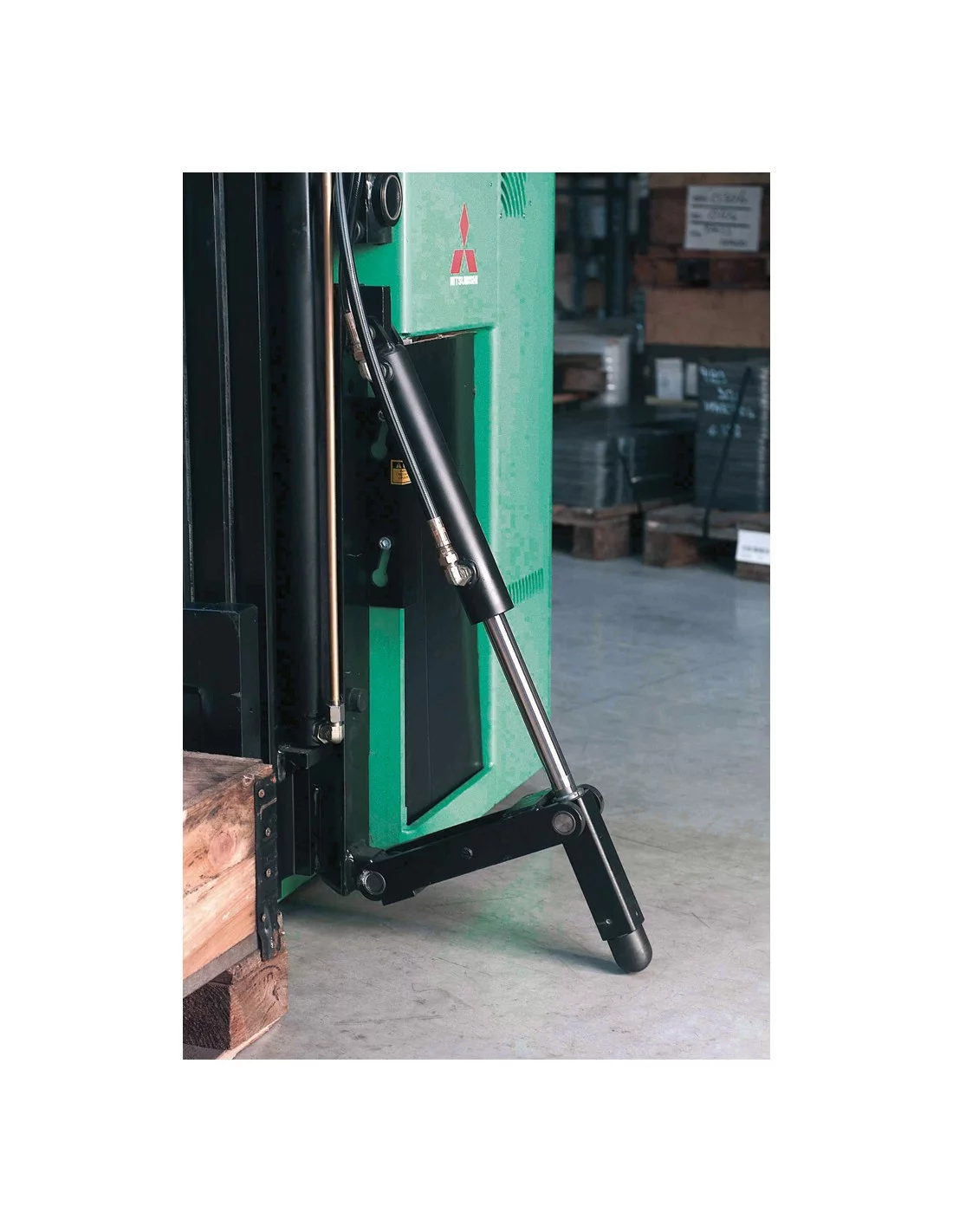

    • Side stabilisers

    Side stabilisers increase residual capacities at higher lifts (as standard with triplex masts).

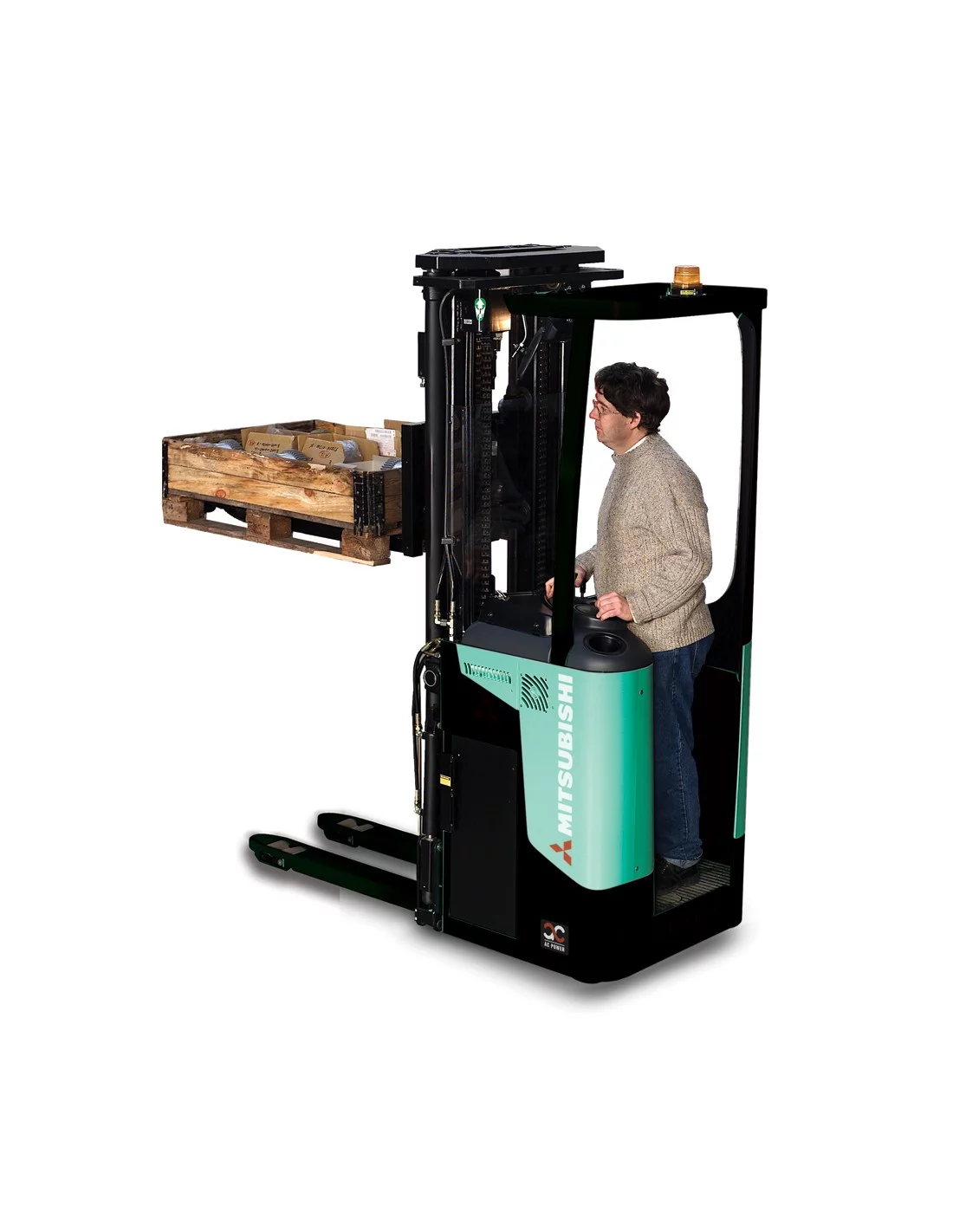

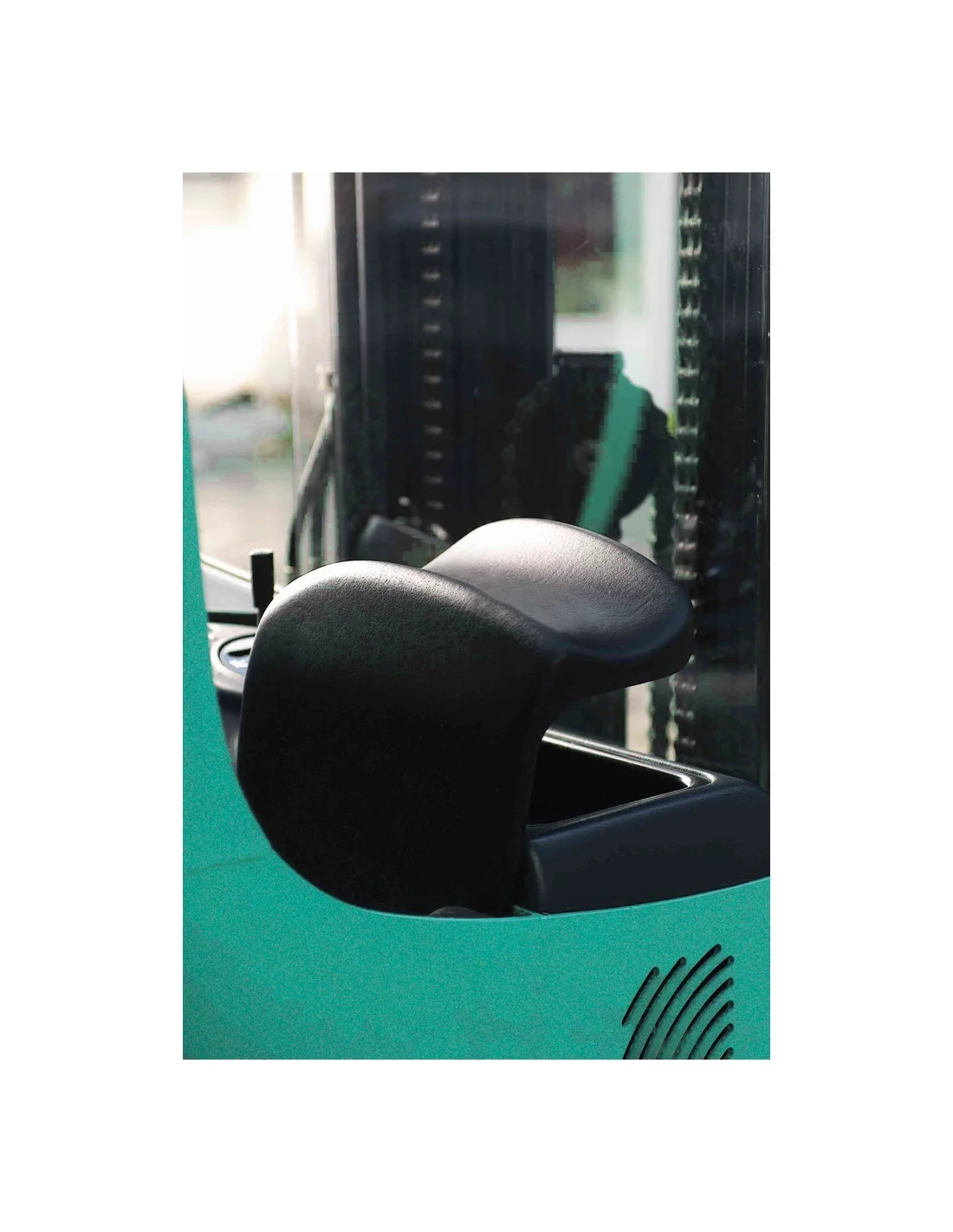

    • Diagonal standing position

    Standing position allows for improved visibility and increased operator comfort - whether traveling forward or in reverse.

    • Fly-by-wire steering and compact dimensions

    Together, these make the truck very efficient at manoeuvring in very small spaces, while increasing flexibility and reducing product damage.

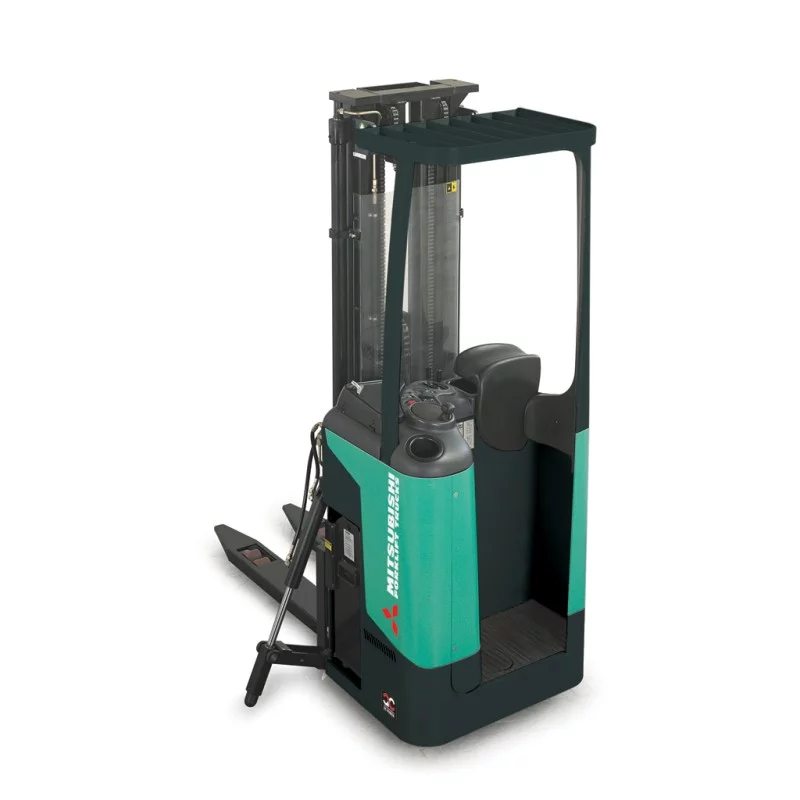

    Mitsubishi SBR16N

    SBR12-16-20N
    Mitsubishi Forklift Trucks
    SBR12N | SBR16N | SBR20N
    20 masts to choose from
    1200 |1600| 2000 kg
    20 masts to choose from
    20 masts to choose from
    65 / 165|165|195 / 1150
    stepless
    1130/445 | 1130/445 | 1540/695
    Vulcollan
    2775 | 3175 | 4415 kg
    600 mm
    (1) + 2/4
    2000 | 2000 |2160 mm
    850 | 850 | 1010 mm
    595 mm
    20 mm
    2090 | 2090 | 2215
    7.0/8.0 | 7.0/8.0 | 6.5/7.5
    0.17/0.31 | 0.13/0.31 | 0.11/0.31
    250 × 100
    7/10 | 7/10 | 6/10
    electric
    1255/1520 | 1295/1880 | 1750/2485
    1665 | 1665 | 1820
    20 masts to choose from
    0.5/0.35 | 0.5/0.35| 0.5/0.4
    Standing
    85 × 75
    2300 mm
    Battery
    385 mm
    2090 | 2090 | 2215
    1440 | 1440 | 1595 mm

    With a range that includes over 150 different models, distinctive green trucks can be seen on work sites and in warehouses all around the world - with Mitsubishi forklifts, reach trucks, order pickers, pallet trucks and more all serving the backbone for some of the busiest and demanding operations around.

    Innovative design, cutting-edge technology and uncompromising quality are standards that define everything we do.

    Move the world forward

    Mitsubishi Forklift Trucks is proud to be part of Mitsubishi Logisnext Europe (MLE).

    MLE is part of the global Mitsubishi Logisnext group - Mitsubishi Logisnext Co. Ltd (ML) - based in Kyoto, Japan. Founded in 1937, ML is a leading provider of innovative logistics and materials handling solutions, operating in Africa, the Americas, Asia, Europe, the Middle East and the Pacific. ML aims to support and contribute to society through pioneering advances in hardware and software.

    ML is a component of the Mitsubishi Heavy Industries group. MHI was established in 1884, having been originally founded as a shipbuilding company in 1870 by Yataro Iwasaki. MHI has since built on its engineering heritage to become a global leader in manufacturing dedicated to continuing progress through technological advancement. It delivers integrated solutions to meet industry needs on land, at sea, in the air, and in space.

    NEUWERTH Logistics SA represents the Mitsubishi Forklift Trucks in Switzerland after having commercialized the UniCarriers trucks and before the ATLET brand.
