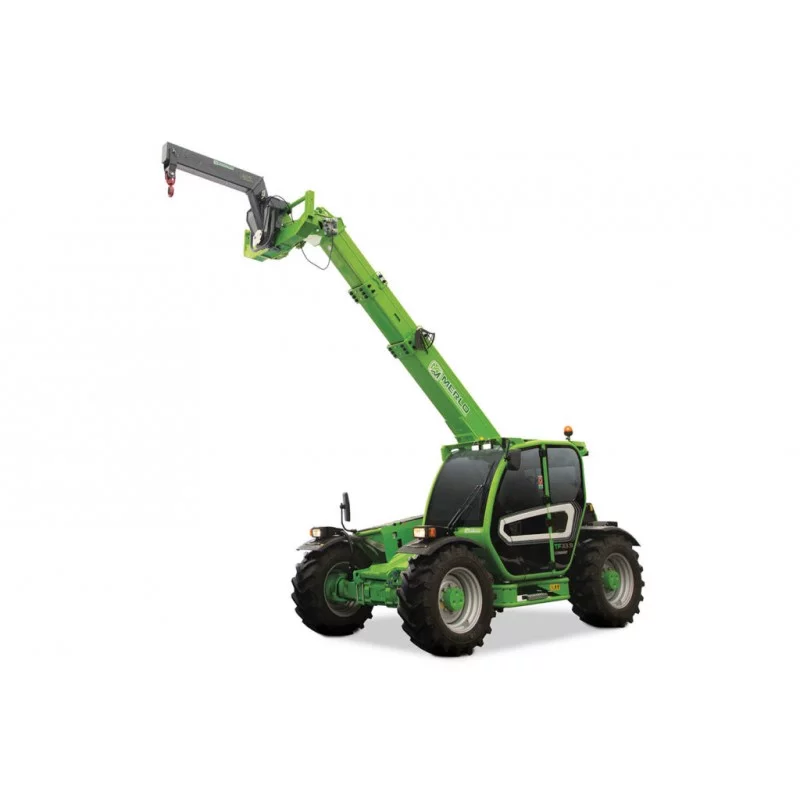

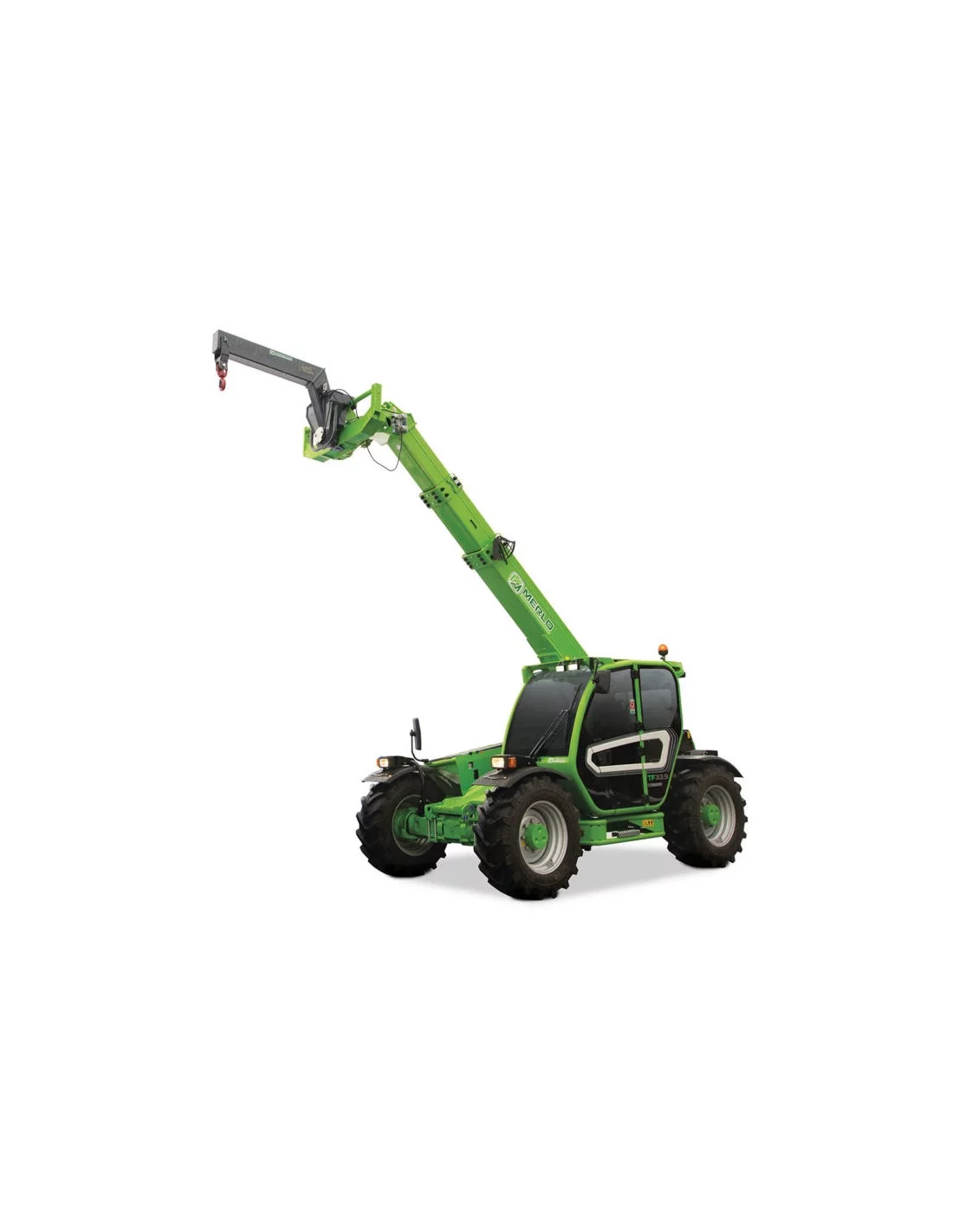

    TurboFarmer 33.9

    The TF33.9 models are part of the Medium Capacity range, recipient of the Machine of the year 2015 award because of its innovative contents.

    This model has a lift capacity of 3.3 tonnes, with a maximum lift height of 8.6 meters. The TF33.9 offers increased ground clearance of 420 mm on standard 24″ tyres.

    The TF33.9-140 is equipped with Deutz 140 hp Stage V engine in conjunction with the 40 km/h Eco Power Drive (EPD) hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.

    Request a quote




    MODEL FEATURES:

    • The TF33.9 comes as standard with the EPD Plus with auto-revving joystick: this electronic control gives the possibility to vary engine rpm directly with the joystick and to activate the Eco and Speed Control functions, in order to maximize ease of use, performance and above all to reduce fuel consumption.
    • Heavy Load function, on the other hand, allows the machine's full potential to be exploited in the most demanding contexts, making it particularly useful for those who carry out heavy excavation work.
    • This model comes with the new ASCS system (Adaptive Stability Control System) in Light version. This tool allows ensuring the maximum operational safety of the machine in any condition and with any TreEmme attachments.
    • A Full version is available as an option: it offers a 10.1” colour screen and it allows:
    • Displaying the capacity diagram, updated in real time
    • Setting and managing the geometric limits of machine use
    • Setting and adjusting the maximum speed of hydraulic movements
    • The premium cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility, whist the option of Cab Suspension provides a superior ride unique to Merlo.

    This machine comes as standard with:

    • Engine: Deutz 3.6 Stage V 85 kW/140 Hp
    • Transmission: Hydrostatic EPD
    • Hydraulic system: Load Sensing + Flow Sharing 125 l/m 210 Bar
    • Capacitive Joystick
    • ASCS: light Adaptive Stability Control System
    • Reversible fan
    • Tractor homologation
    • Pick up hitch
    • Electric socket for trailer
    • Hydraulic braking
    • Front and rear diff lock
    • Fork Jack Guards
    • Superior Cab configuration
    • Sun shade
    • Double rear hydraulic line with independent and proportional control
    • LED lights on cab
    • Roof wiper
    • Rear mirror
    • 400/70-24 tyres

    Performance

    Everything at your fingertips

    Exclusive precision:

    Guarantees maximum movement precision, thanks to the hydrostatic transmission, which ensures millimetric variations in the machine's movements and load's positioning.

    Compact and lightweight:

    The Merlo telescopic handlers are compact and lightweight to reduce manoeuvring space and impact on the ground. These features guarantee safety, manoeuvrability, productivity and lower consumption.

    Visibility:

    Merlo telescopic handlers are designed to offer the best visibility on the market, ensuring faster and safer operations.

    Comfort

    The best workplace

    Quiet and comfortable:

    The new cab, of generous dimensions (1.010 mm), is mounted on Silent Blocks, which drastically reduce vibrations, guaranteeing maximum comfort and maximum visibility for the operator.

    Quick accessories changeover:

    The Tac-Lock system for hydraulic clamping of the attachments further improves operating comfort.

    Protection of the handled load:

    The boom suspension system (BSS) is available as an option, which protects the load during transfer and maintains a high level of driving comfort on rough terrain.

    Air Conditioning System:

    The air flow is distributed homogeneously within the passenger compartment and optimally reaches all areas for first-class comfort.

    Safety

    Not just feelings

    Record-breaking safety:

    The Merlo integrated safety system controls the operating parameters in real time, allowing the operator to work in peace.

    Certified cabs / Certified protection:

    The Merlo cab is FOPS - Level II - and ROPS certified, to guarantee a high level of safety for the operator.

    Efficiency

    Simpler and smarter

    Simple and precise operations:

    The entire range is equipped with hydrostatic transmission, which makes the work phases simpler and more precise. Moreover, the dry disc brakes limit the absorption of energy, thereby reducing the machine’s fuel consumption.

    Fan Drive:

    The Fan Drive is a technology fitted as standard that allows you to change the engine fan's rotation direction from venting, which cools the radiators, to blowing, which cleans the radiators, eliminating dust and residues collected during the work phase.

    Reduced consumption: The exclusive Eco Power Drive (EPD) technology automatically controls and adjusts the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal.

    This technology achieves a reduction in fuel consumption of up to 18%.

    MERLO TurboFarmer 33.9CS-140

    TF33.9/CS-140
    MERLO S.p.A.
    TF33.9-140 | TF33.9CS-140
    10085kW / 136hp
    8600
    3300
    4/3600
    hydraustatic
    7300 | 7450
    4330
    2250
    40 km/h
    400/70-24
    discs
    Deutz TCD3.6
    125-210 bar
    Seated
    400/70-24
    2240 | 2300
    Diesel
    2740
