NEUWERTH Logistics SA - Mitsubishi Forklift Trucks - PBS20N - Pallet truck

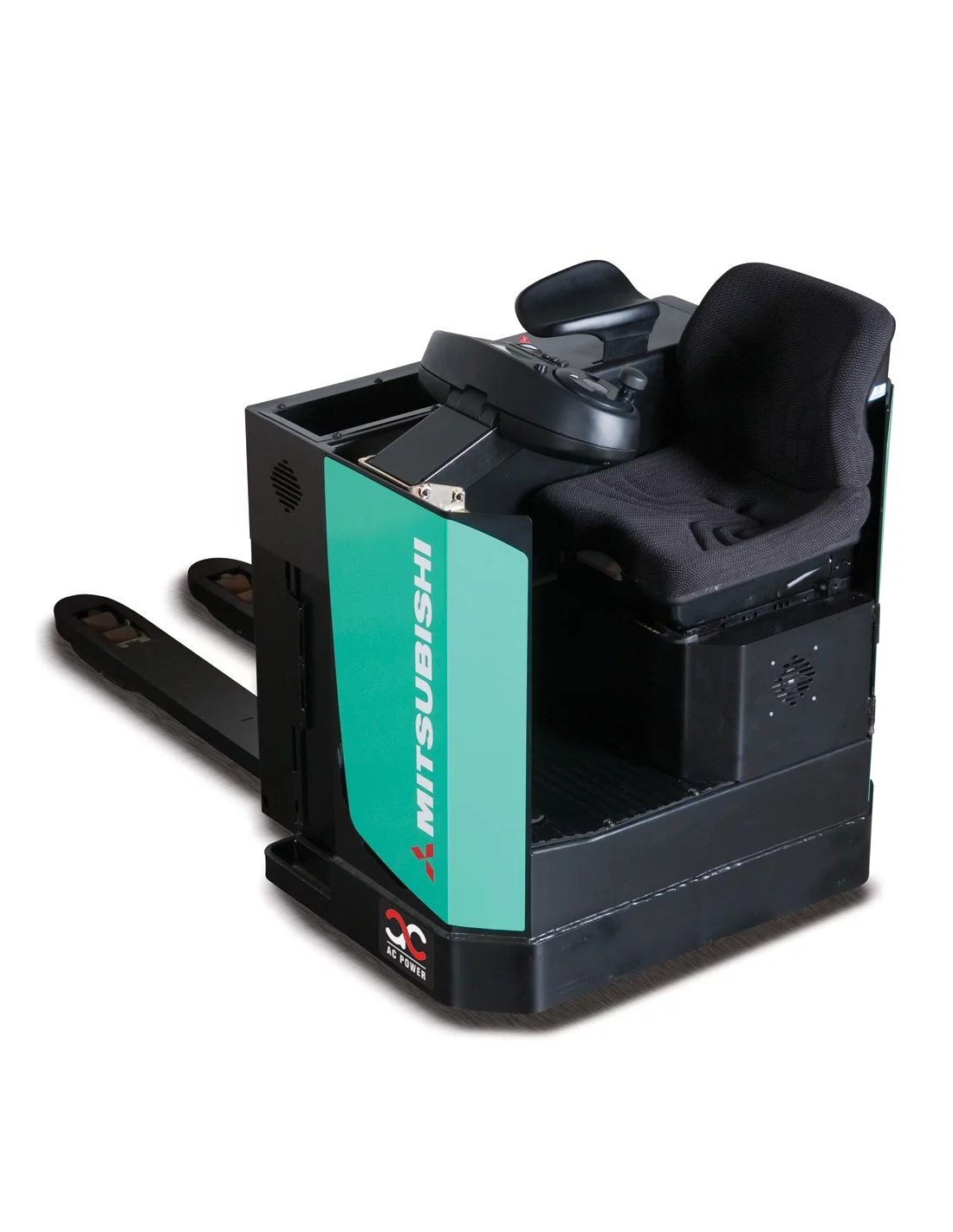

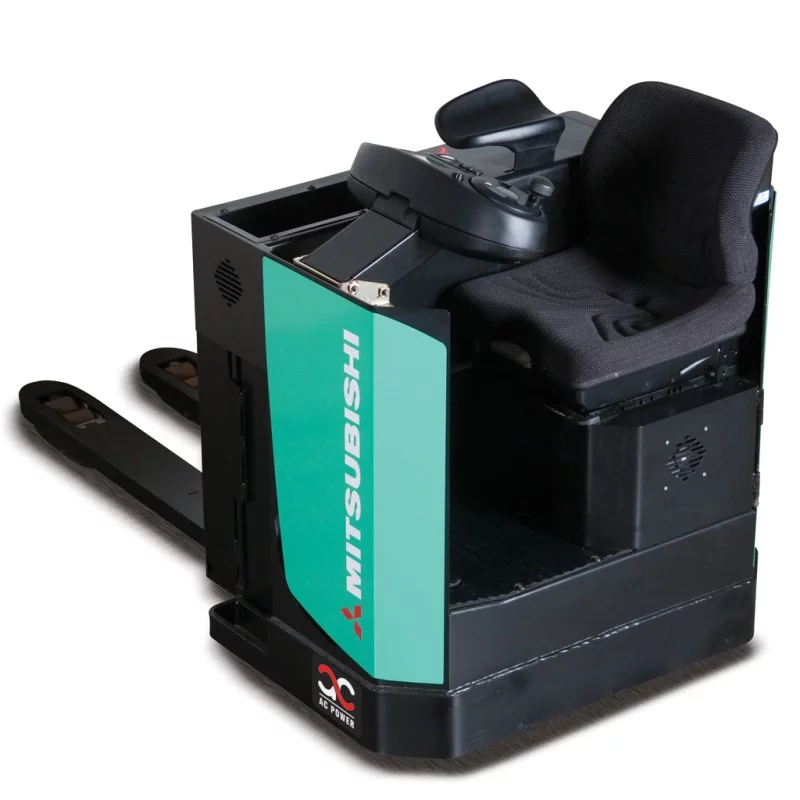

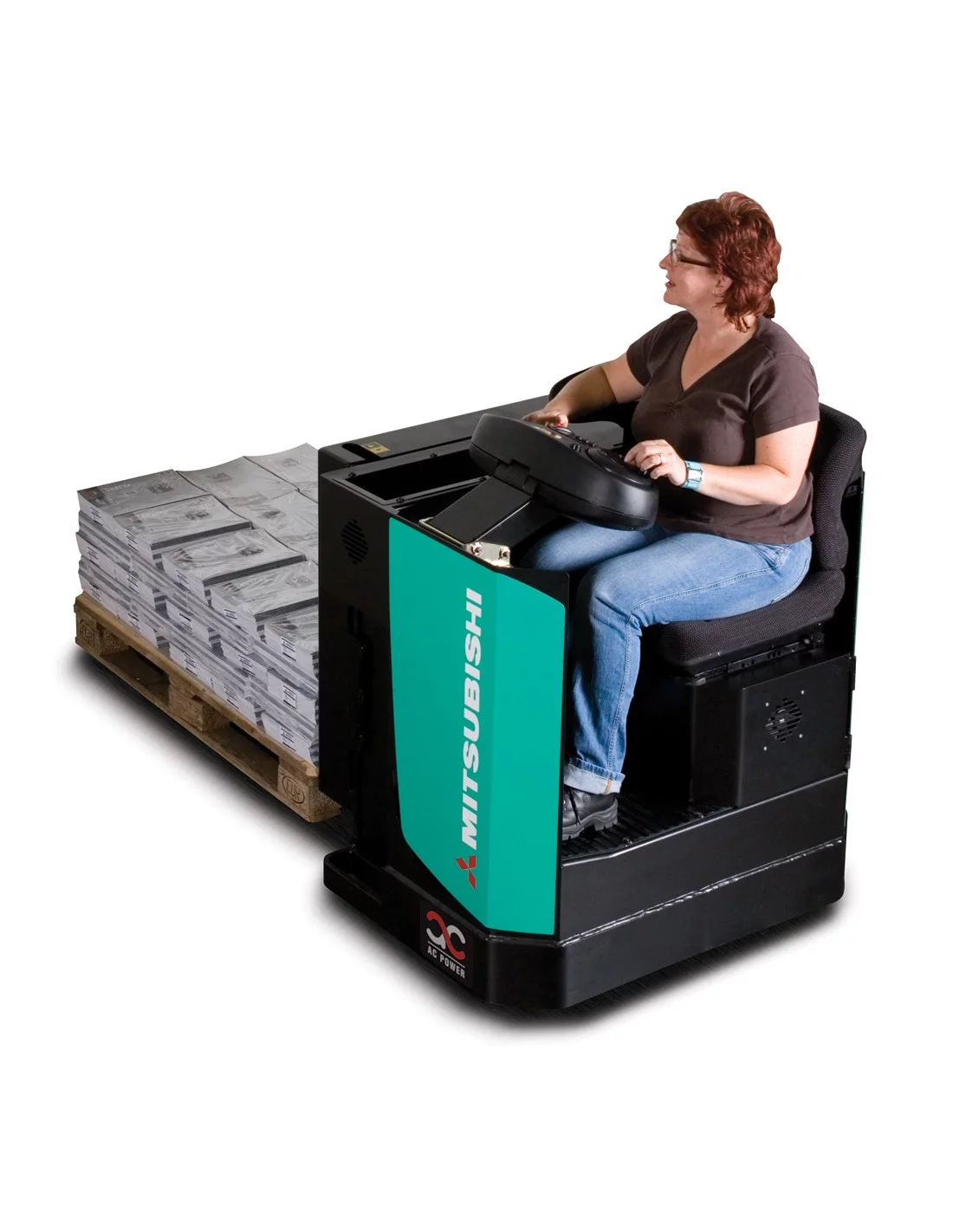

PBS20N

Sit-on Power Pallet truck: Fast, efficient pallet transport... delivered in comfort!

For efficient transport of goods over longer distances, look no further than the strong, fast, controllable PBS20N sit-on powered pallet truck. With effortless, precise steering, ergonomic controls and a comfortably seated operator, the PBSN promises constant productivity through the longest of shifts.

A low-maintenance AC drive motor, long service interval and rapid access to all components reduces costs and maximises uptime. Meanwhile, the robust chassis protects both operator and truck from accidental damage.

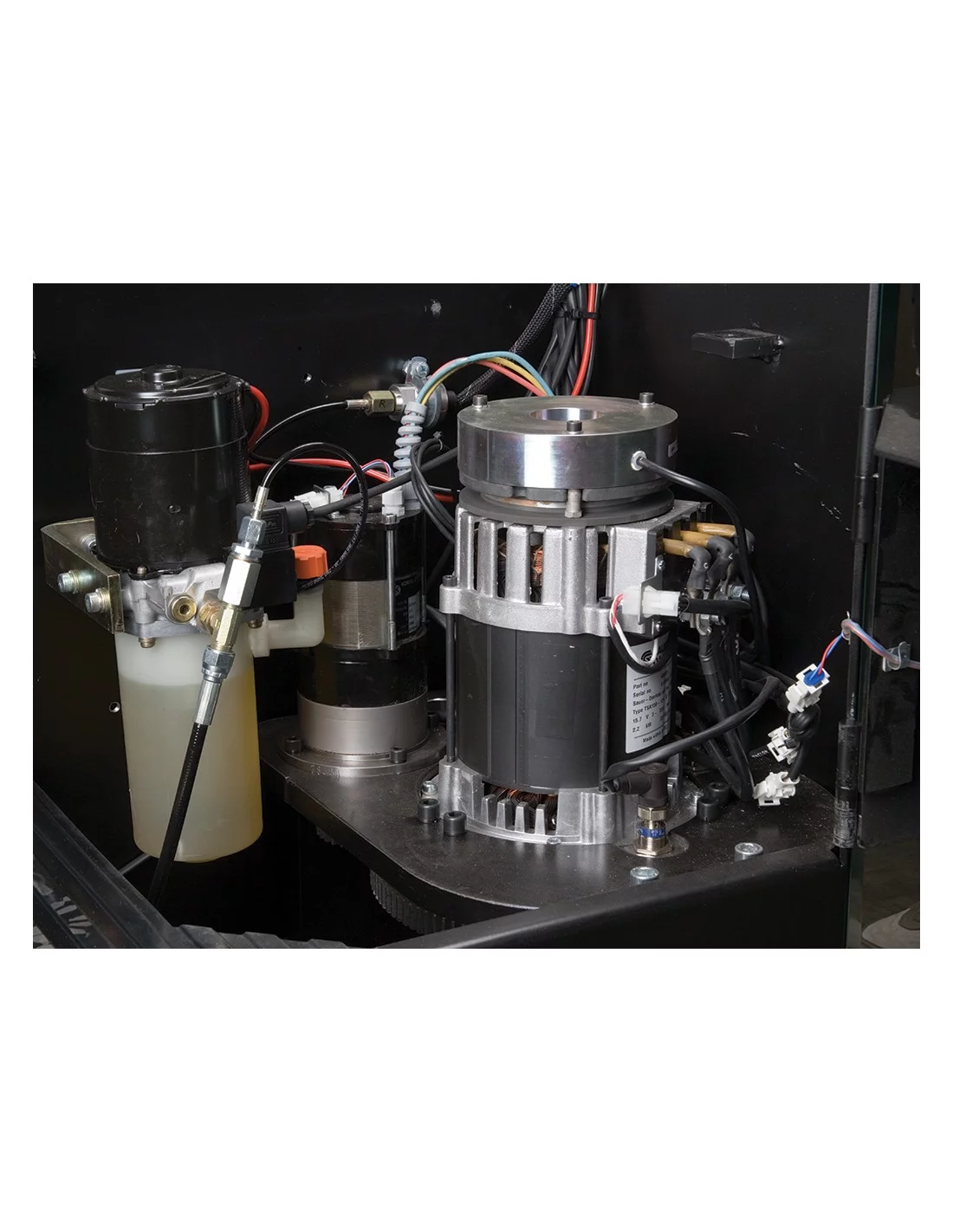

Powerful AC motor

means high drive speed and acceleration - even when loaded - plus smooth, quiet, controlled operation, extended shift length and lower maintenance requirements.

PIN code start-up

with driver-specific settings is included as standard to prevent unauthorised or inappropriate use.

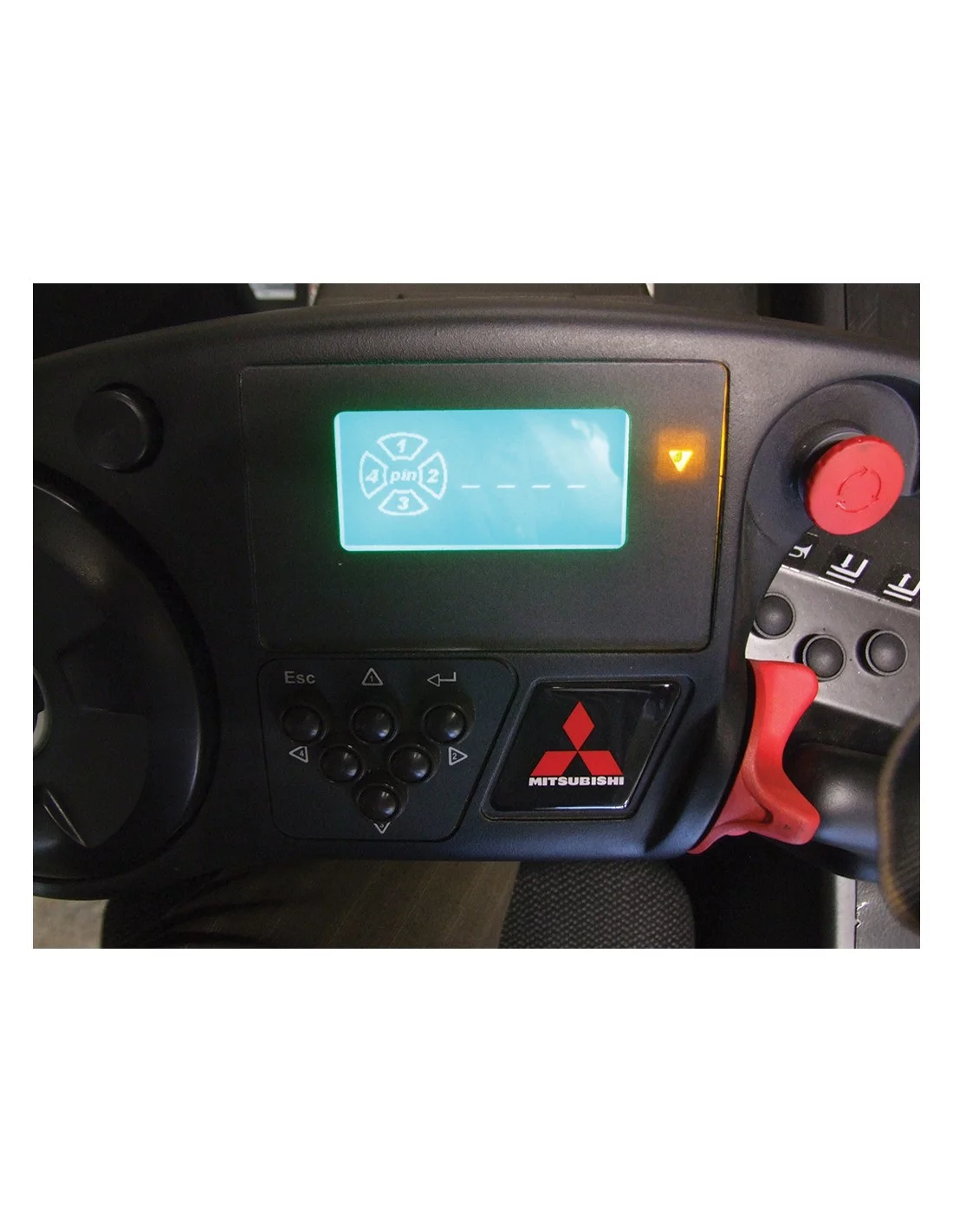

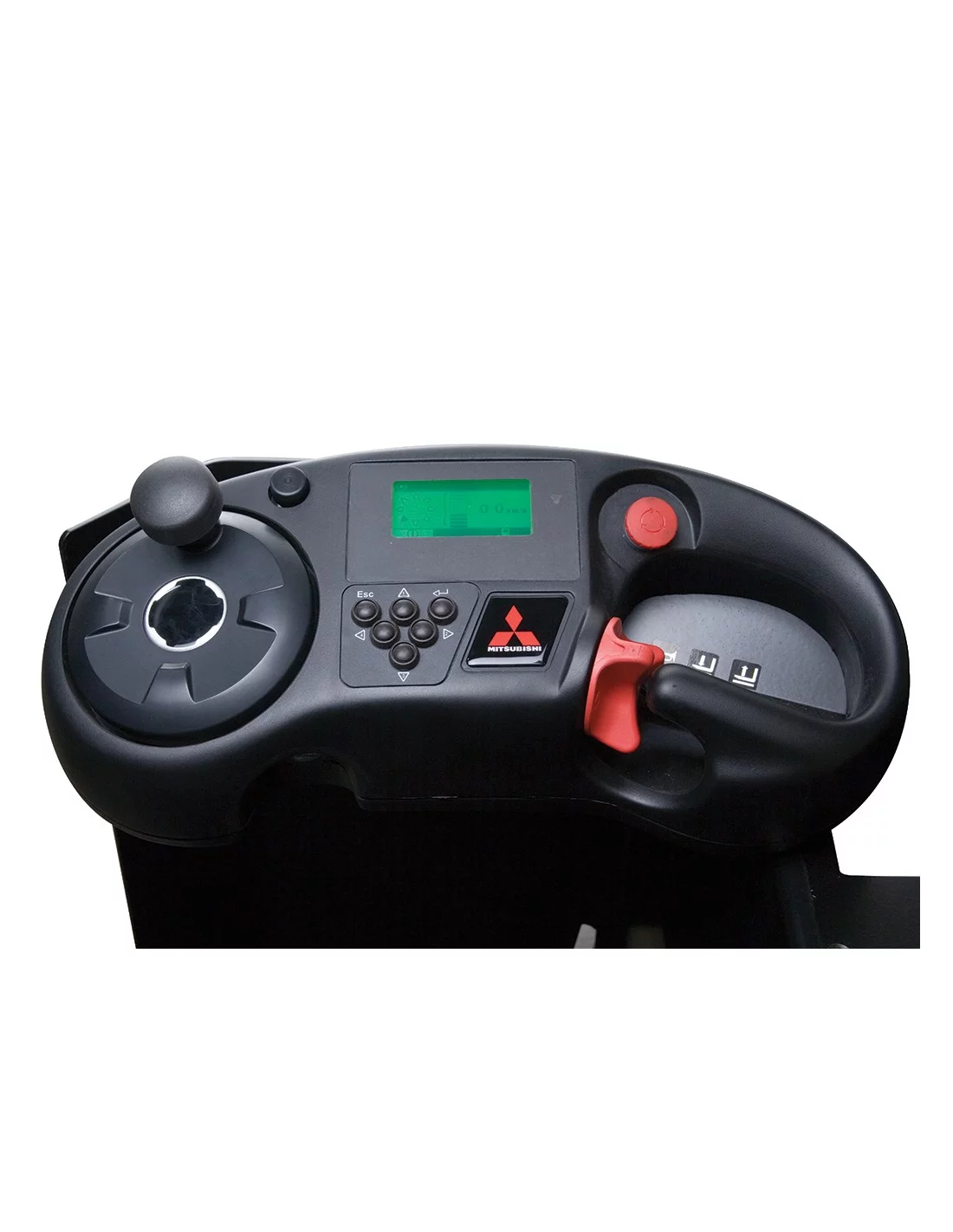

Programmable controller

adjusts acceleration, travel speed and braking to suit the application and operator - for great versatility.

Robust chassis

offers exceptional durability and driver protection.

Full-suspension, fully adjustable seat

with optional hip restraints and belt keeps driver safe and comfortable through the longest of shifts.

Mitsubishi PBS20N

Reference PBS20N

Manufacturer Mitsubishi Forklift Trucks

Model PBS20N

Lift height 115

Load capacity 2000 kg

Lowered mast 1335

Forks 50 / 165 / 1150

Axle no load 735/220

Tire type Vulcollan

Service weight 2955 kg

Load center distance 600 mm

Wheels Front/Rear (driven) (1)+2 / 4

Length 2100

Width 1050

Rear tread 685

wheelbase 35

AST 800x1200 2389

Speed with/without load 1950

Lifting with/without load 0.03/0.04

Tire size, front 85 × 75 mm

Gradeability with/without load 6/15 %

Service brake electric

Noise level 66 dB (A)

Axe full load load 1125/1830

Turning radius 1950

Lowering with/without load 0.07/0.02

Typ of operation Seated

Tire size, rear 250 × 100 mm

Power unit Battery

Front Tread 354-514

AST 1000x1200 2189

Wheelbase 1674 mm

Seat height 400

With a range that includes over 150 different models, distinctive green trucks can be seen on work sites and in warehouses all around the world - with Mitsubishi forklifts, reach trucks, order pickers, pallet trucks and more all serving the backbone for some of the busiest and demanding operations around.

Innovative design, cutting-edge technology and uncompromising quality are standards that define everything we do.

Move the world forward

Mitsubishi Forklift Trucks is proud to be part of Mitsubishi Logisnext Europe (MLE).

MLE is part of the global Mitsubishi Logisnext group - Mitsubishi Logisnext Co. Ltd (ML) - based in Kyoto, Japan. Founded in 1937, ML is a leading provider of innovative logistics and materials handling solutions, operating in Africa, the Americas, Asia, Europe, the Middle East and the Pacific. ML aims to support and contribute to society through pioneering advances in hardware and software.

ML is a component of the Mitsubishi Heavy Industries group. MHI was established in 1884, having been originally founded as a shipbuilding company in 1870 by Yataro Iwasaki. MHI has since built on its engineering heritage to become a global leader in manufacturing dedicated to continuing progress through technological advancement. It delivers integrated solutions to meet industry needs on land, at sea, in the air, and in space.

NEUWERTH Logistics SA represents the Mitsubishi Forklift Trucks in Switzerland after having commercialized the UniCarriers trucks and before the ATLET brand.
