VNA TRUCKS

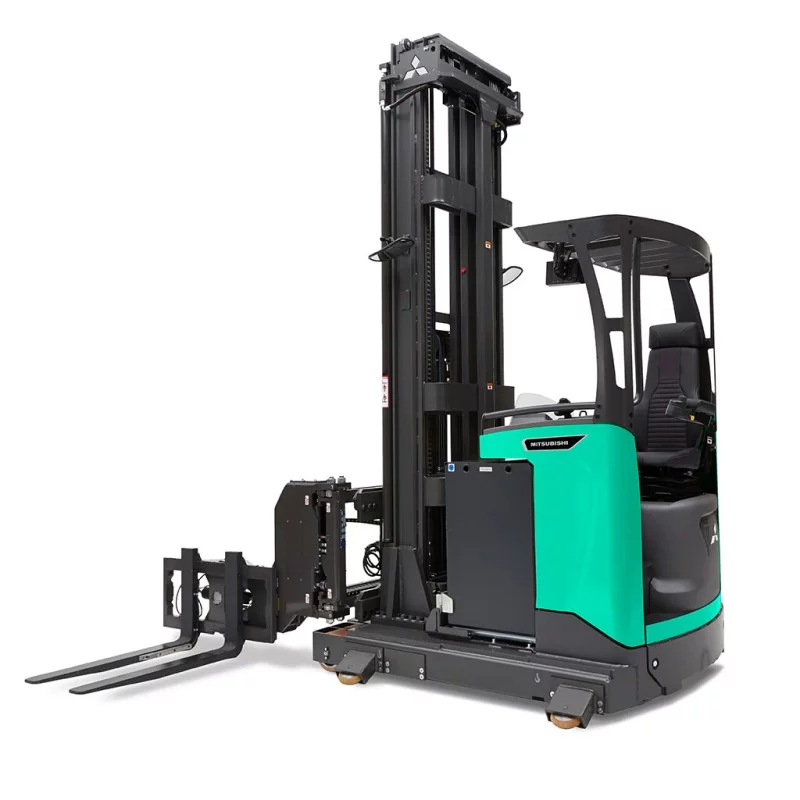

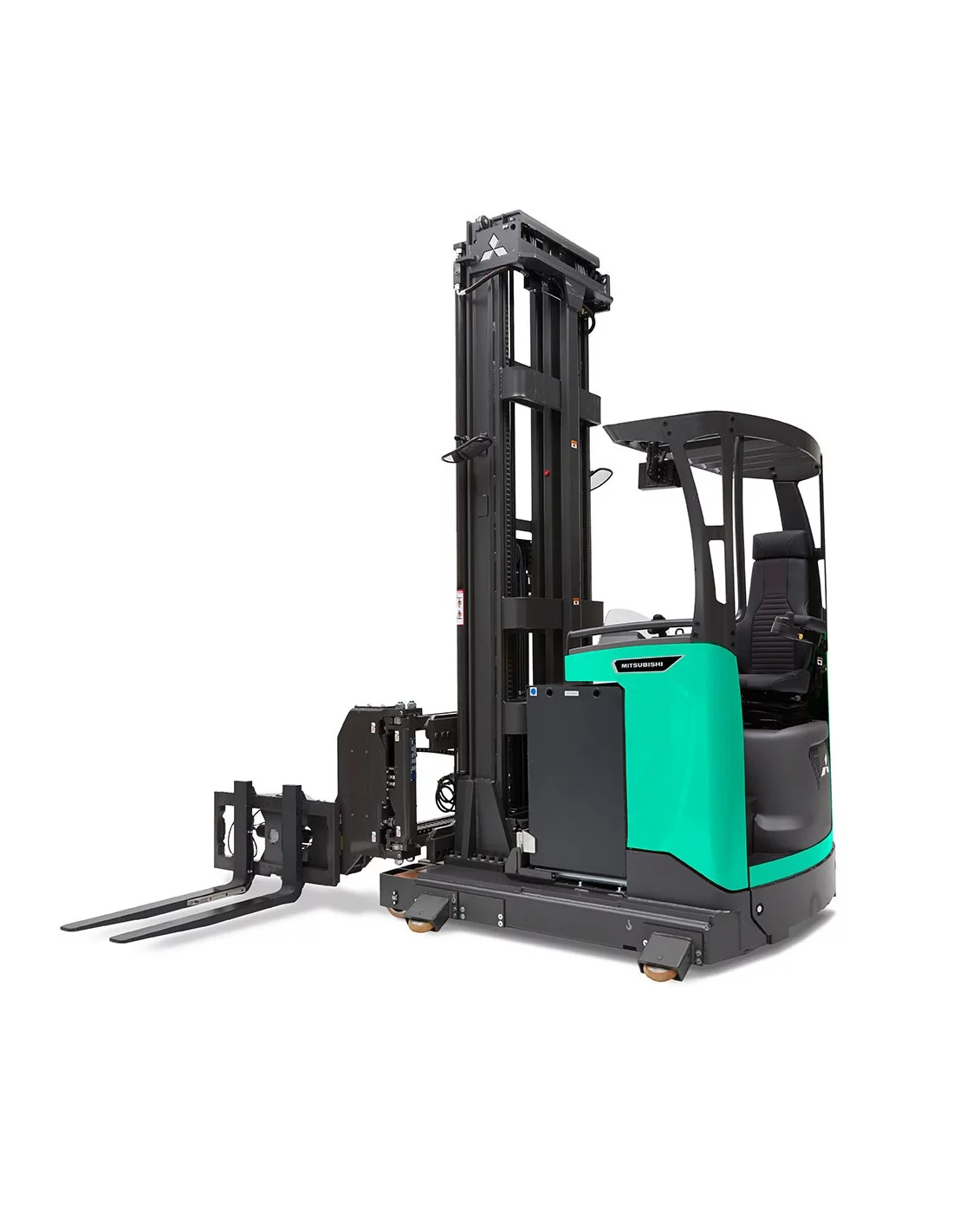

Narrow aisles and high racking let you maximise your valuable warehouse space. With the THD13-15N3 Series you get an exceptional VNA truck with reach truck-like agility as well as many similar features - the perfect combination to make the most of your optimised layout. 2 models to choose from with a load capacity of 1250kg or 1500kg.
Its market-leading performance - with top speeds of up to 14 km/h - combined with ergonomic design and comprehensive safety features make for high productivity through incredibly efficient, safe operation.
When outside of aisles, VNA trucks can often be less efficient and manoeuvrable. This usually means P&D stations and feeder trucks are needed so the VNA trucks can remain in the aisles. The cycle times of VNA trucks and feeder trucks rarely sync up, which means time wasted while one is sat idle.
By combining the best of man-down VNA and reach truck capability in a single truck, operators can fetch their own pallets without having to rely on extra staff and head straight into the very narrow aisles. With trucks that do both, you can optimise your space and optimise your operations: lower costs by streamlining the number of trucks and personnel, and increase capacity by not having P&D stations.
Automatic Speed Reduction
For safer operation when the truck is operating outside of guided stacking aisles, drive speed is automatically reduced when forks are raised above a certain height.
Two trucks in one
While the THD13-15N3 series is an excellent, efficient VNA truck inside the aisles, it also manages to retain reach truck-like levels of agility and manoeuvrability when out of the aisles. The benefit of this is not needing P&D stations, feeder trucks, and extra drivers as this truck can do it all. You benefit from high storage capacity at your site, but keep the fleet to a minimum.
MaxVision

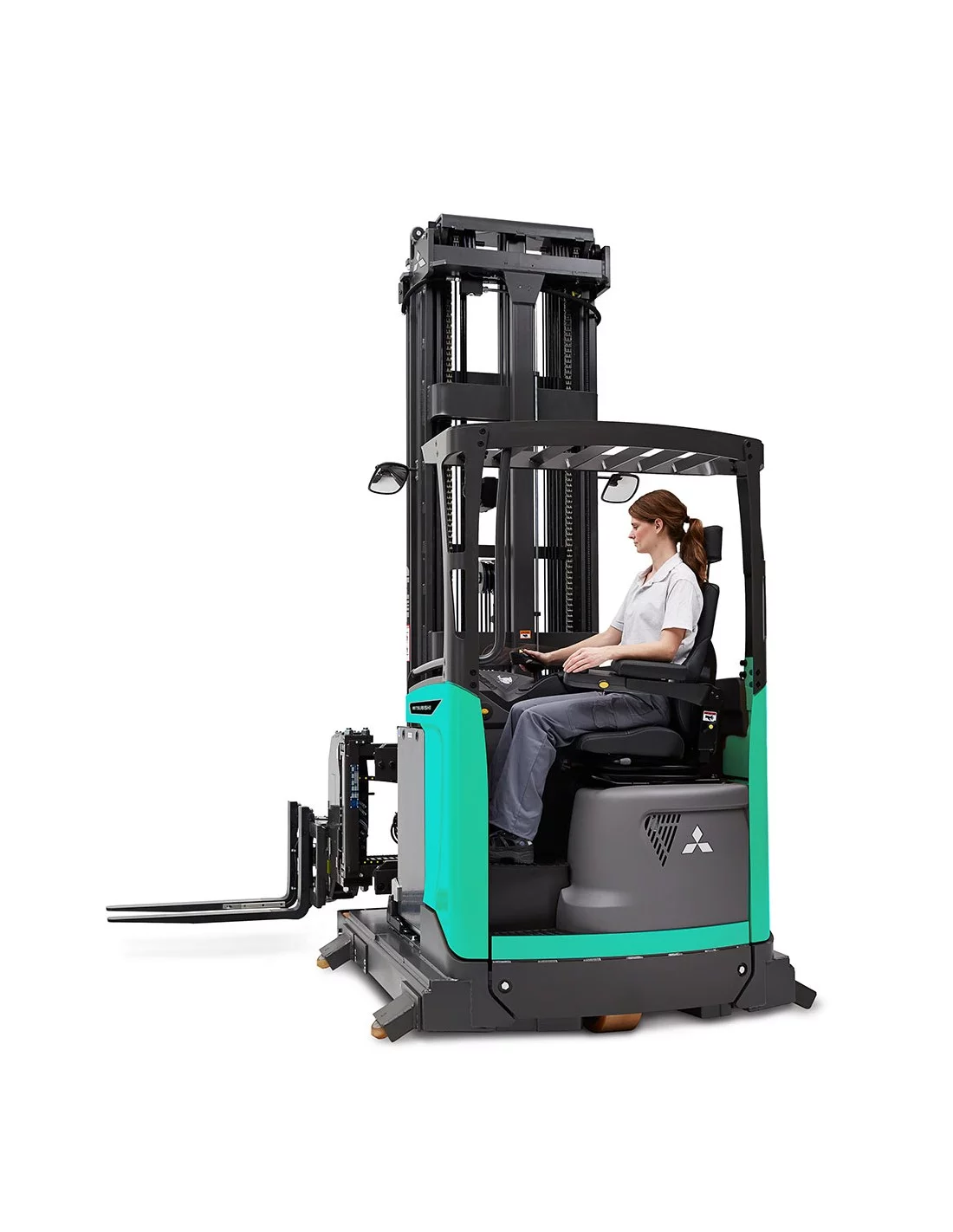

The truck been fully optimised to give the operator the widest all-around view possible. The clear view through the mast allows an excellent view of the forks and load. This increases driver confidence, safety and productivity.

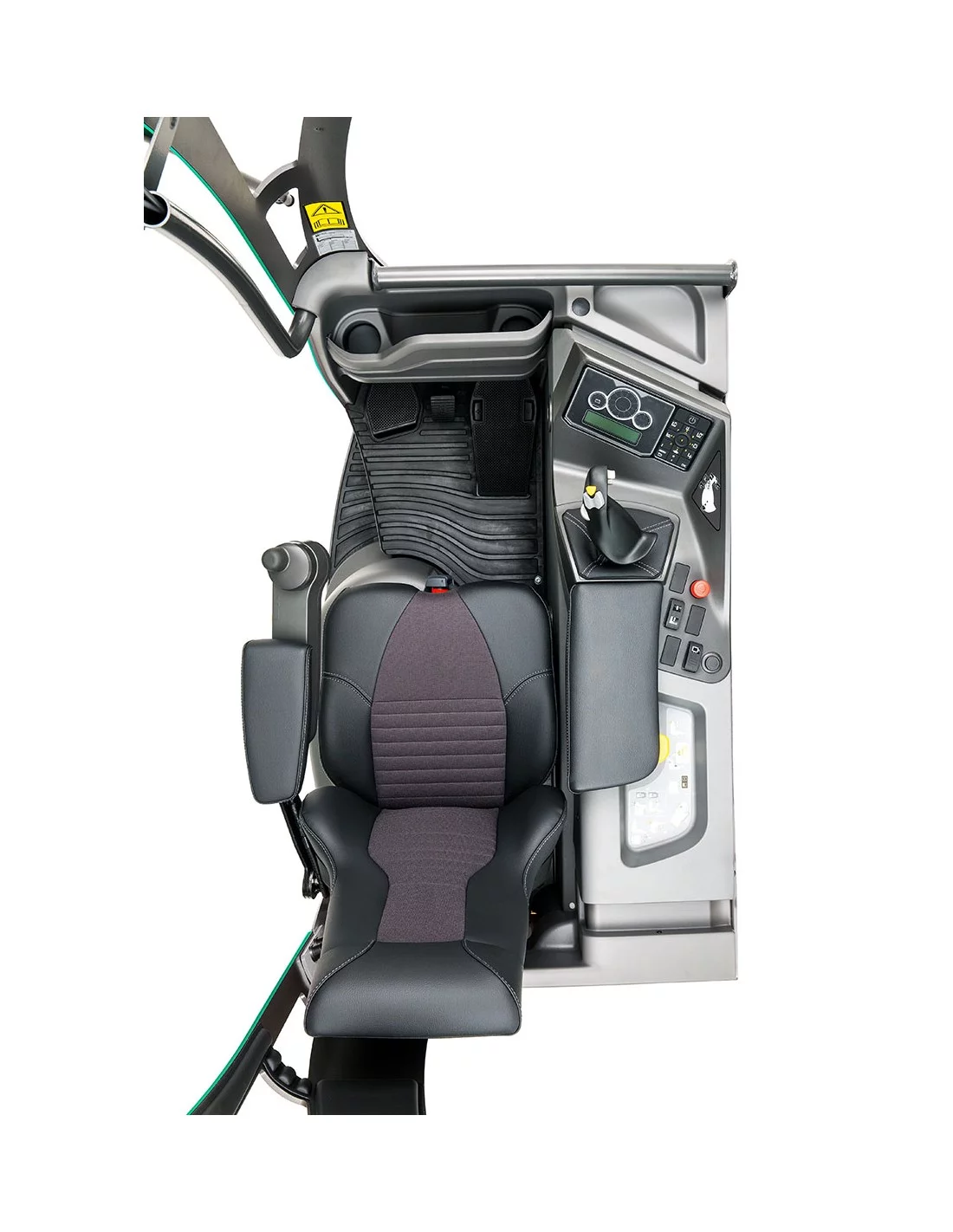

Multifunctional Ergologic Joystick

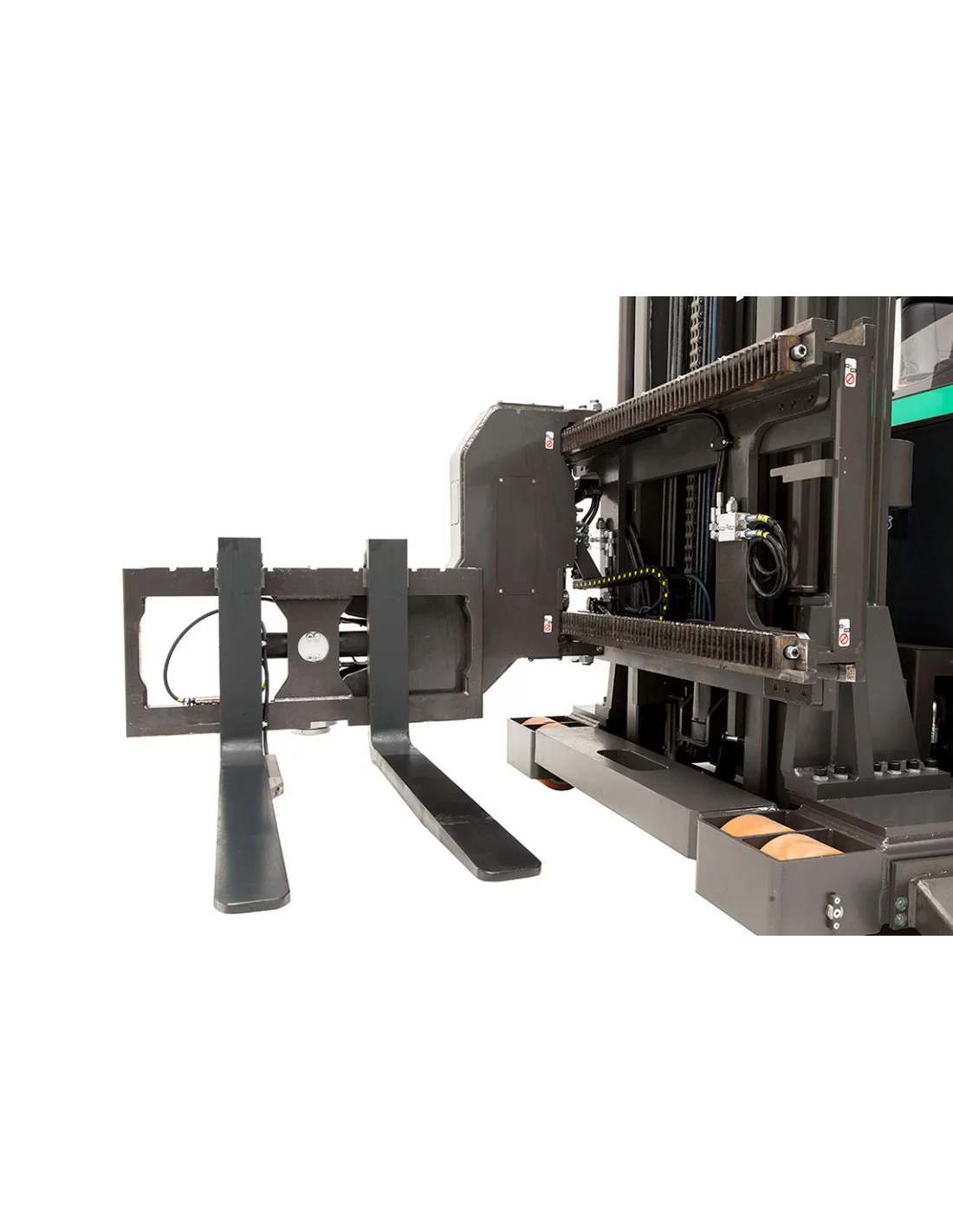

This highly ergonomic joystick provides a single ergonomic grip for up to seven different functions, including lifting, lowering, rotation and fork traverse. Having these functions mapped to a single joystick makes for intuitive, natural operation.
Level Assist System (option)
The system detects a drop-off in lift speed input, sensing the operator's intent and stopping the forks are at precisely at the right level for safer, more efficient handling.
THD13-15N3
Mitsubishi Forklift Trucks
THD13N3 | THD15N3
11 masts to choose from
1250 | 1500 kg
11 masts to choose from
11 masts to choose from
40 / 100 / 800, 1000, 1150
stepless
Power Thane
6674 kg
400 - 600 mm
1450 mm
55 mm
1640 mm
12.0/12.0 km/h
0.38 / 0.47 | 0.34 / 0.47 m/s
electronic
59.7 dB (A)
1735 mm
11 masts to choose from
0.57 / 0.54 m/s
Seated
2205 mm
Battery
1640 mm
1534 mm
1077 mm
With a range that includes over 150 different models, distinctive green trucks can be seen on work sites and in warehouses all around the world - with Mitsubishi forklifts, reach trucks, order pickers, pallet trucks and more all serving the backbone for some of the busiest and demanding operations around.
Innovative design, cutting-edge technology and uncompromising quality are standards that define everything we do.
Move the world forward
Mitsubishi Forklift Trucks is proud to be part of Mitsubishi Logisnext Europe (MLE).
MLE is part of the global Mitsubishi Logisnext group - Mitsubishi Logisnext Co. Ltd (ML) - based in Kyoto, Japan. Founded in 1937, ML is a leading provider of innovative logistics and materials handling solutions, operating in Africa, the Americas, Asia, Europe, the Middle East and the Pacific. ML aims to support and contribute to society through pioneering advances in hardware and software.
ML is a component of the Mitsubishi Heavy Industries group. MHI was established in 1884, having been originally founded as a shipbuilding company in 1870 by Yataro Iwasaki. MHI has since built on its engineering heritage to become a global leader in manufacturing dedicated to continuing progress through technological advancement. It delivers integrated solutions to meet industry needs on land, at sea, in the air, and in space.
NEUWERTH Logistics SA represents the Mitsubishi Forklift Trucks in Switzerland after having commercialized the UniCarriers trucks and before the ATLET brand.
