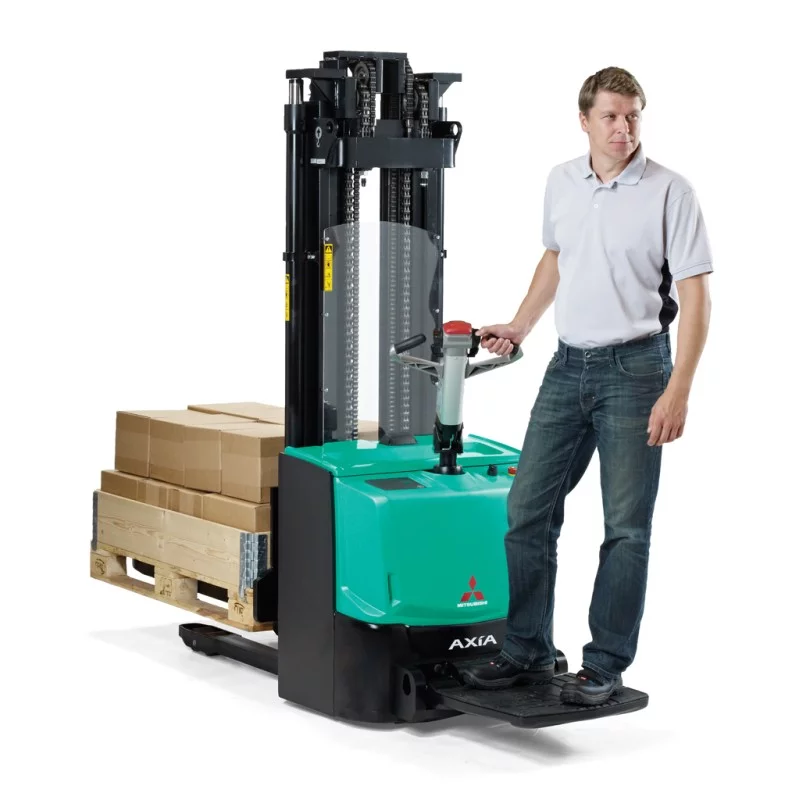

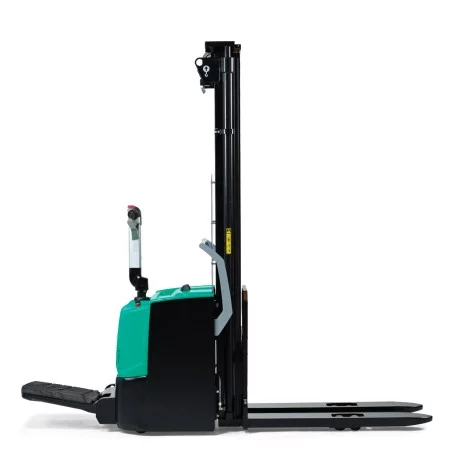

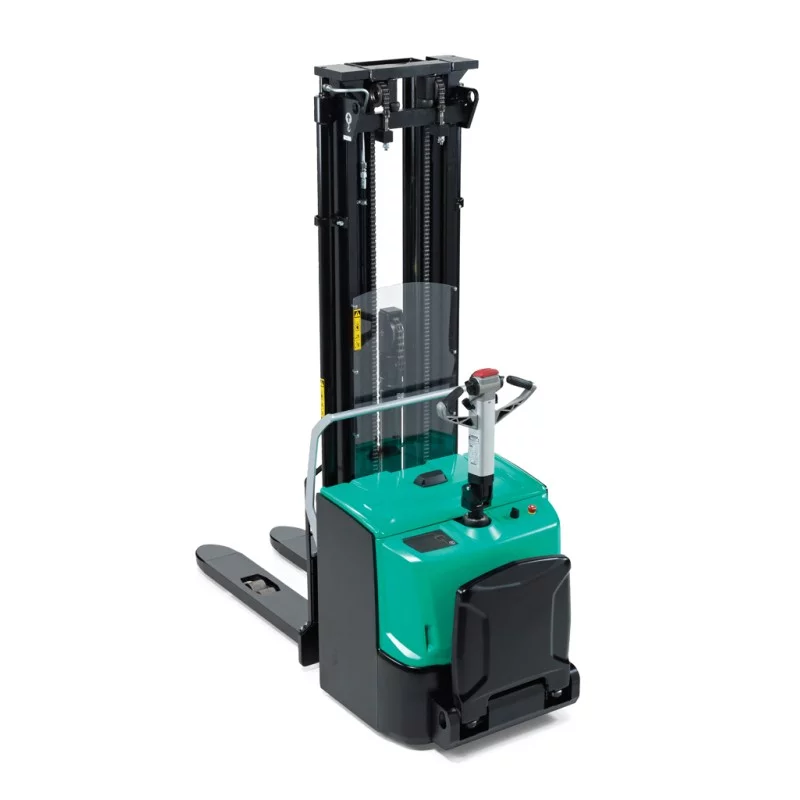

AXiA ES - SBP1xN2R
Model with platform. The compact AXiA ES stacker range has the shortest chassis on the market, allowing it to work in extremely narrow aisles so you can get the most out of your storage space.
Unaffected by dirt, debris, dust and water thanks to its sealed protective chassis and waterproof components (rated to IP54), the AXiA ES will work dependably indoors or out with minimum maintenance.
Designed for safety and efficiency the AXiA ES has an exceptionally large foldable platform so that the operator has space to adjust position without stepping off the truck.

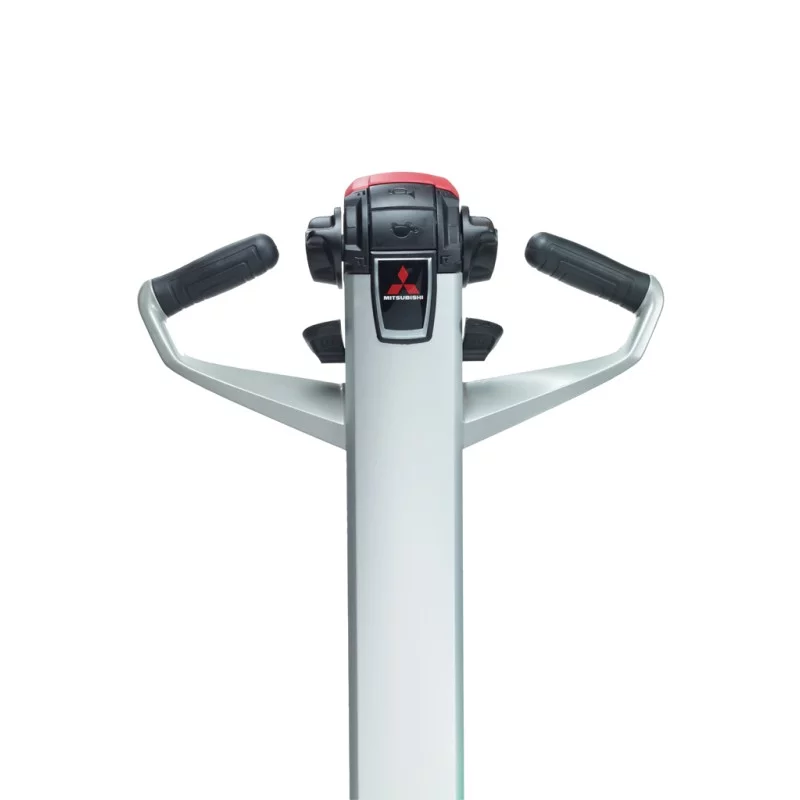

AXiA ES offers two operating modes. ECO mode is suitable for new operators as it limits speed for smooth movement. PRO mode supports faster speeds for optimum performance and productivity. Controls are located on both the left and right sides of the ergonomic tiller arm, making the truck safer and easier to operate.

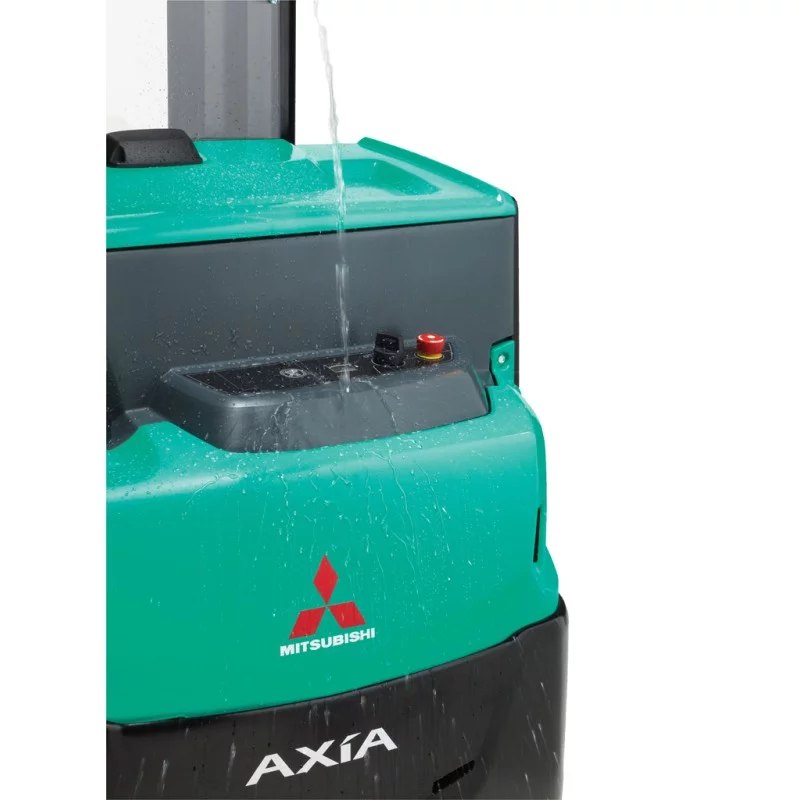

Waterproof and dustproof chassis
Its sealed chassis, combined with IP54 waterproofing increases uptime and productivity. It can even work in harsh environments.
Cast iron drive unit
Industrial-designed, heavy-duty, cast iron drive unit with gears running in an oil bath ensures maximum durability.
Low centre of gravity
Provides high residual lifting capacity and increased stability.
Compact chassis
The very compact chassis design allows the machine to work in much tighter aisles - releasing valuable storage space and making it safer to operate.
Steel battery lid
Strong steel construction battery lid with heavy-duty steel hinges for long life.
SBP12-14-16N2R
Mitsubishi Forklift Trucks
SBP12N2R |SBP14N2R | SBP16N2R
20 masts of your choice
1200 | 1400 | 1600 kg
20 masts of your choice
20 masts of your choice
56 / 186 / 1150
AC
860/385 | 1010/425 | 1010/430
Vulcollan
1245 | 1435 | 1440 kg
600 mm
2127 / 2607
800
385
20
2443 / 2923
6.0/6.0 km/h
0.12/0.26 | 0.12/0.26 | 0.14/0.27
230 × 70
8/15 %
electric
60 | 60 | 70 dB (A)
870/1575 | 1280/1555 | 1315/1725
1968 / 2448
20 masts of your choice
0.12 / 0.26| 0.12 / 0.26| 0.14 / 0.27
Standing
85×90 | 85×75 | 85×75
Battery
517
2243 / 2723
1205
752
